Dimebag Darrell (Pantera) Rig

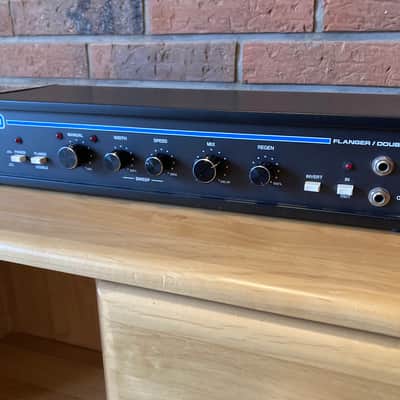

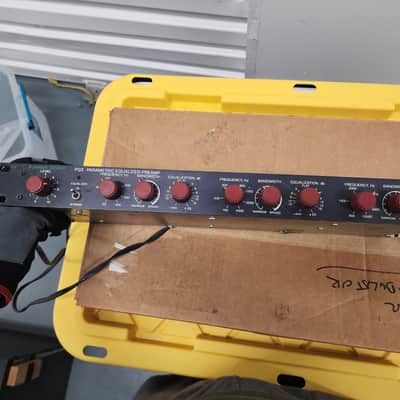

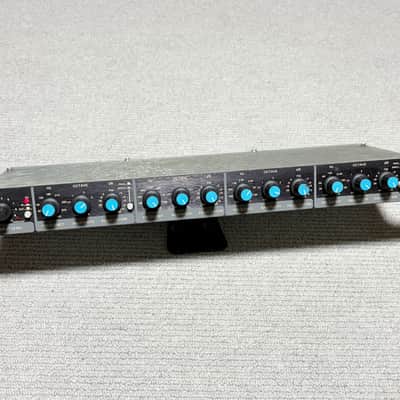

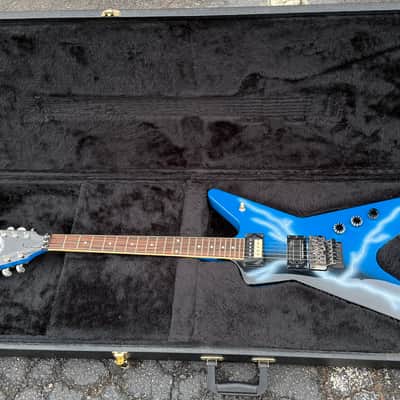

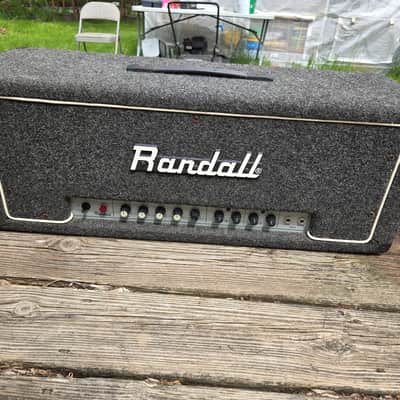

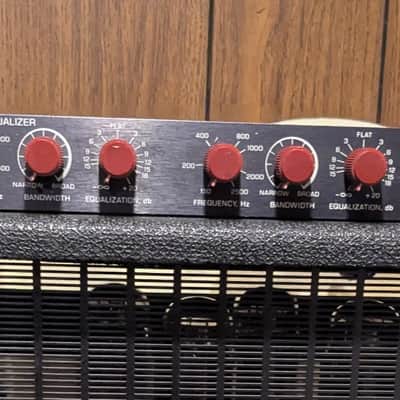

Dimebag Darrell (Darrell Lance Abbott) defined 1990s groove metal with pinched harmonics, Floyd dives, and a bright, scooped solid-state grind. The guitar people picture is his 1981 Dean ML “Dean From Hell,” loaded with a Bill Lawrence L-500XL in the bridge and a Floyd Rose, run into Randall RG100ES heads on Cowboys From Hell (1990) and The Great Southern Trendkill (1996) and Randall Century 200 heads on Vulgar Display of Power (1992) and Far Beyond Driven (1994). In front of those amps he stacked a Furman PQ-3/PQ-4 parametric and a blue MXR six-band EQ as a gain boost and mid scoop, then thickened the rhythm with an always-on MXR 126 Flanger/Doubler.

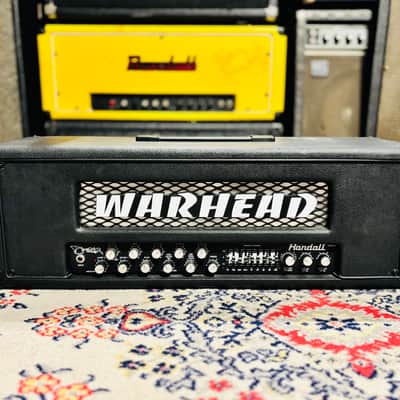

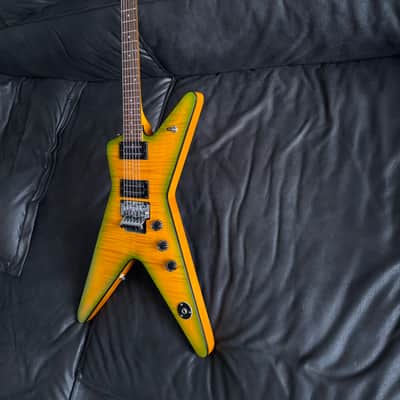

When Dean shut down in 1994 he spent a decade on Washburn — the Dime 333 and USA Dime 3 being the touring workhorses — and signed off on the 300-watt Randall Warhead in 2000 so the EQ rack could live in one box. In 2004 he left Washburn and Randall, went back to Dean MLs, and switched to tube Krank Revolution stacks, later approving the Krankenstein; he dumped the Furman/MXR rack and went straight in. He co-designed the Dean Razorback that year but was killed on 8 December 2004 before touring a finished one. Dean’s From Hell and Razorback models are the last documented signature line, not the Washburn or Warhead chapter.
