Gibson Burstbucker '61 Zebra PAF Alnico Humbucker Pickups and Wiring Harness Kit: Push-Pull Pots, Coil Splits, Phase Switch, Pure Bypass Switch

Gibson Zebra Burstbucker Lead '61 and Rhythm '61 Alnico PAF Humbucker Pickups and Quick Connect Solderless Wiring Harness Kit - with Coil Splits, Phase and Bypass

Made in USA. Removed from a 2021 Gibson Les Paul Classic like the one in the YouTube video (see link).

Fits: Gibson Les Pauls and similar LP style guitars. Great upgrade for your Epiphone Les Paul.

Description: Want better sound and more versatility from your Les Paul? Want high quality hand-wound Gibson pickups? Want to maintain the looks without adding switches. Want the out-of-phase "Greeny" quack made famous by Peter Green, Gary Moore and Kirk Hammet? How about single coil tones? Want to install it quickly without soldering? Want it to be reversible? This kit is just what the Doctor ordered!

Everything you need to install Gibson Pickups and electronics in your Les Paul
All components have quick connect terminals for ease of installation - No soldering required. Remove your pickups, pots, switch and output jack and replace them with the parts included in this kit.

Controls:

• Three-way toggle switch
• Bridge volume, Bridge tone, Neck volume, Neck tone
• Pull bridge volume to split bridge pickup for single coil (P90) mode
• Pull neck volume to split neck pickup for single coil (P90) mode
• Pull bridge tone for pure bypass mode (bridge pickup directly to output jack, no tone)
• Pull neck tone for phase reverse for that out of phase quack like Greeny

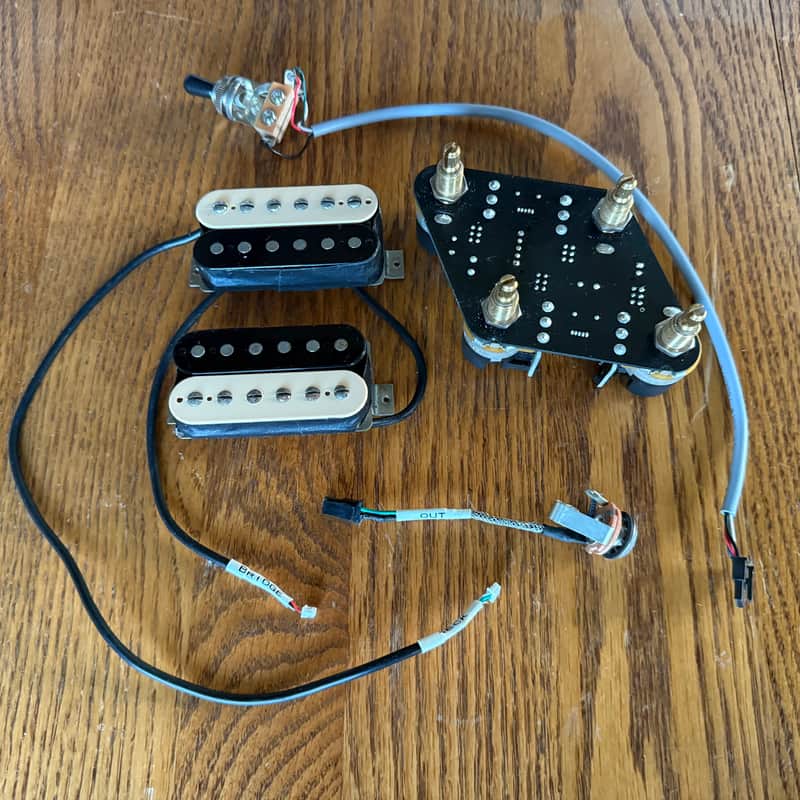

Includes the following:

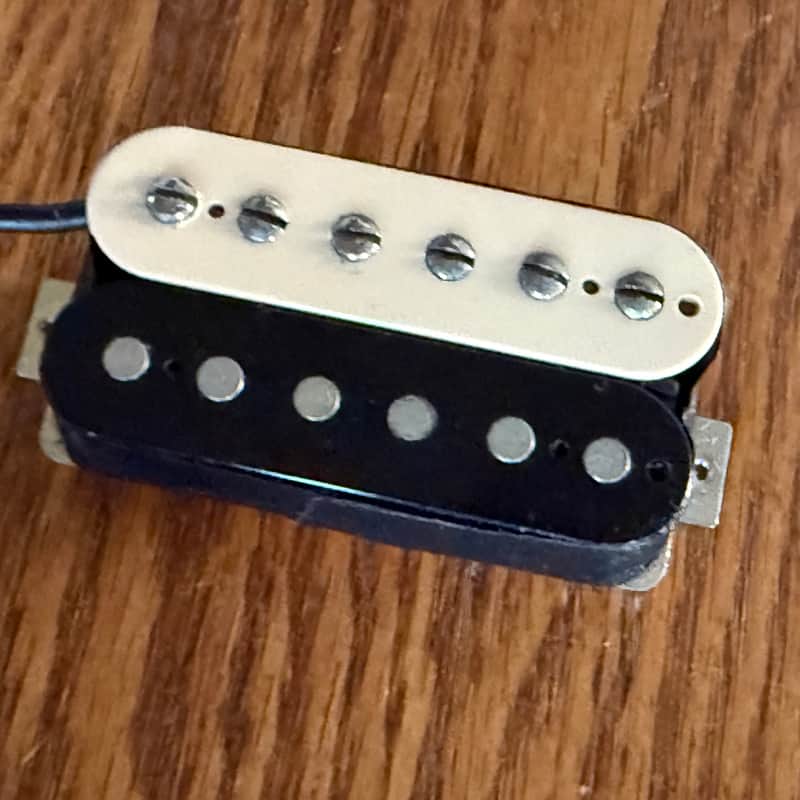

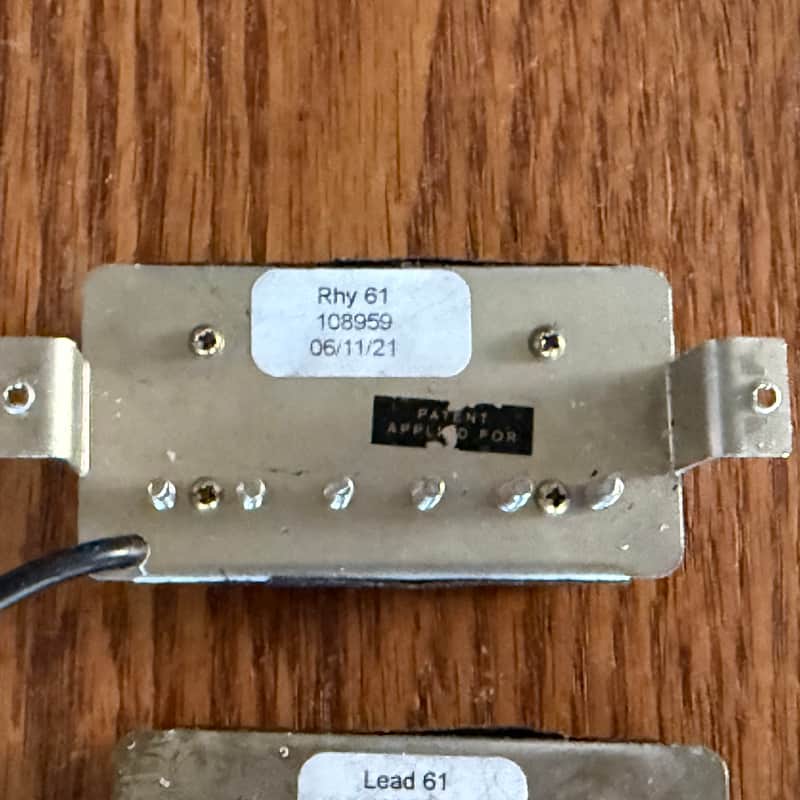

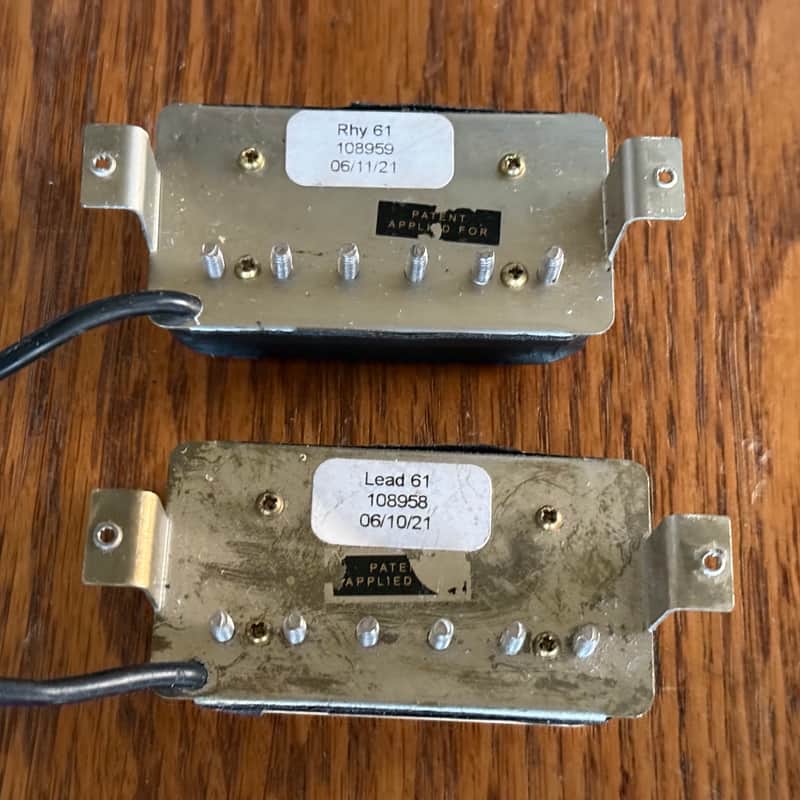

• Gibson Burstbucker '61 Rhythm neck pickup

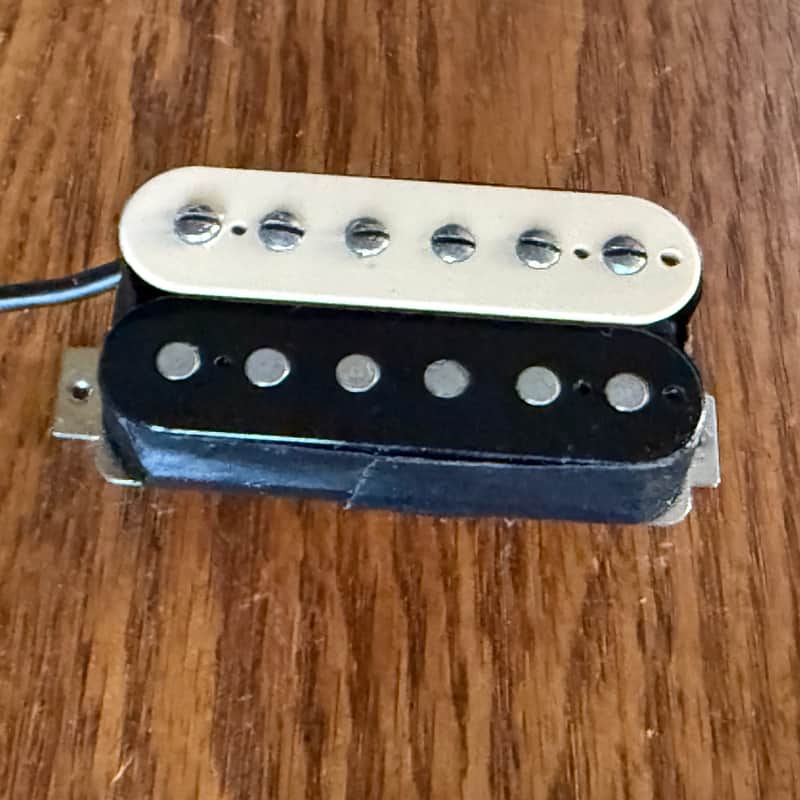

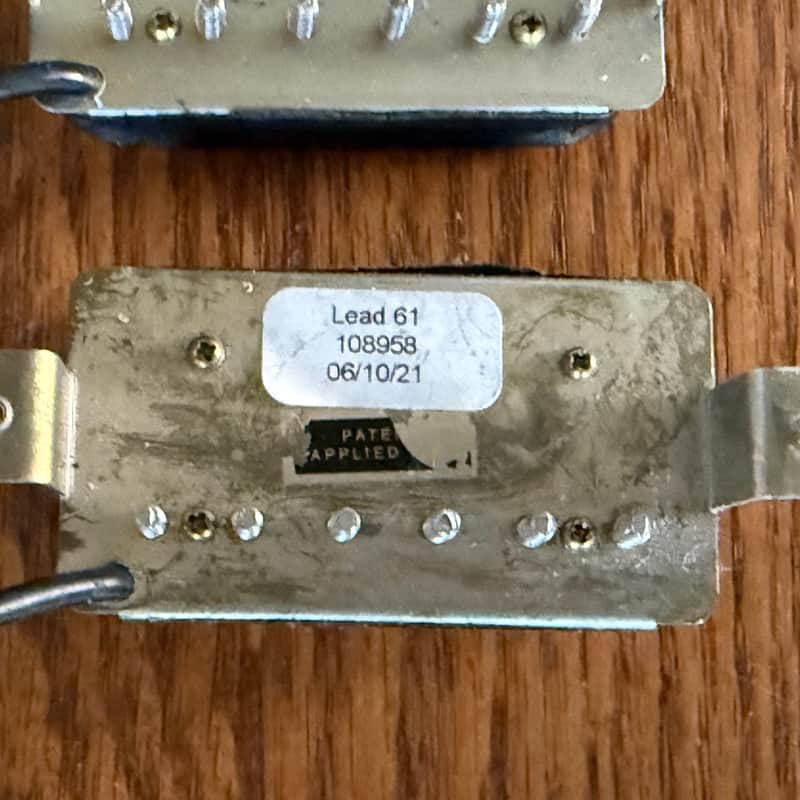

• Gibson Burstbucker '61 Lead bridge pickup

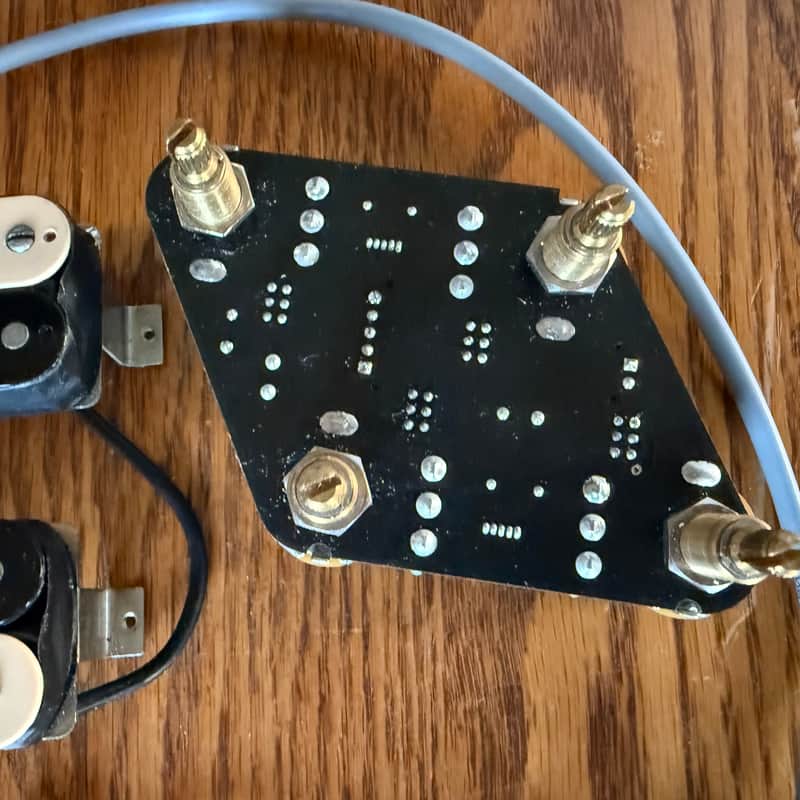

• Four Gibson/CTS 500k long-shaft push-pull pots

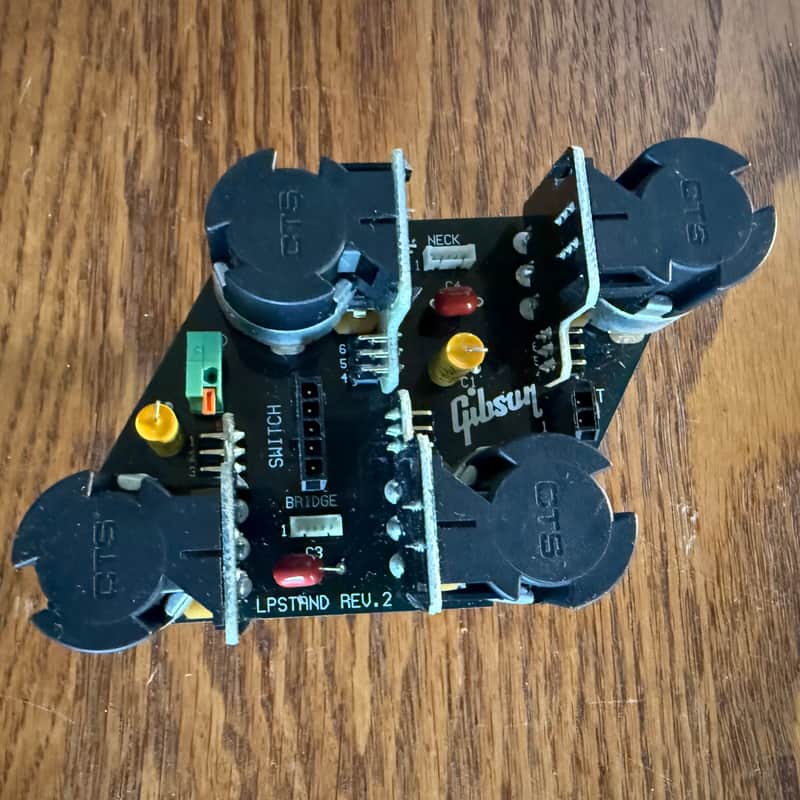

• Gibson quick connect circuit board with tone capacitors
• Three-way toggle switch
• Switchcraft output jack

Features and Benefits:

• Pots are pre-wired for coil splits, phase reversal and pure bypass mode
• All parts are quick connect. No soldering necessary.
• Awesome upgrade for an Epiphone Les Paul or other Les Paul style guitar
• Nice upgrade for a Gibson Les Paul with standard controls
• High quality parts removed from a Gibson Les Paul Classic, like the one shown in the Youtube video
• These parts would cost you about $600, if you could find the parts individually.

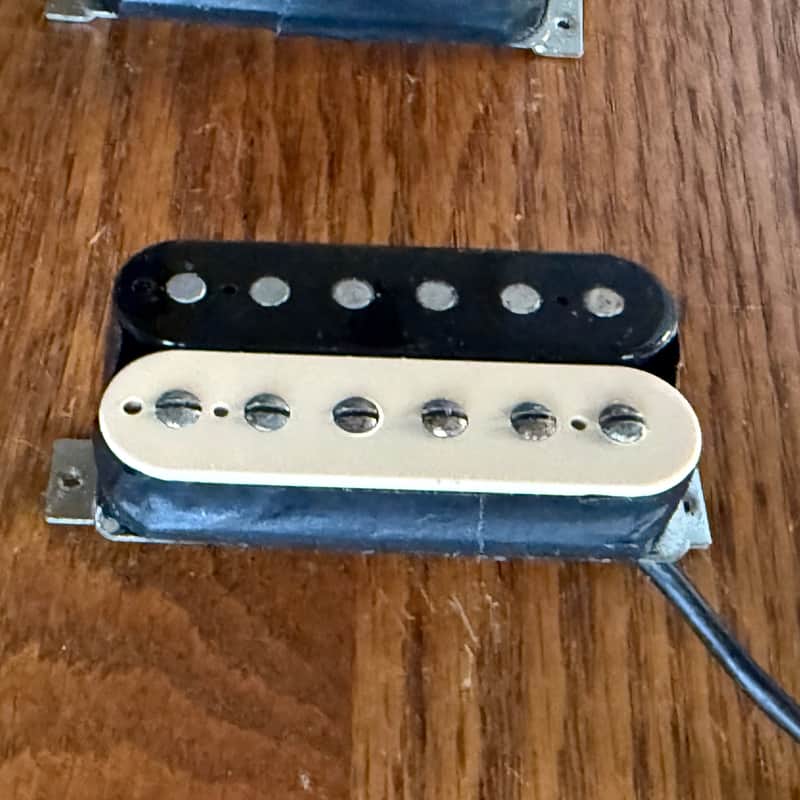

Burstbucker '61 Pickups:  The Gibson Burstbucker pickups use Alnico V magnets and are wound with 5261 winds on the screw side and 5000 on the slug side. They are designed to replicate the subtle variations of classic humbucker tones with historically unbalanced coil windings. The 61R (neck) and 61T (bridge) pickups are wound identically, reflecting the historical practice of using the same pickup for both positions.  Because of the Alnico 5 magnets and asymmetrical windings, the Burstbucker '61s offer a distinct sound signature:

• Bright, clear and glassy with greater touch sensitivity and top-end sparkle than standard PAF's
• A scooped, less compressed midrange paired with tight, punchy bass
• Clean tones sound airy and open, while pushing the amp produces a legendary snarling, aggressive classic-rock bite without getting muddy
• Known for a bright and smooth tone with clarity, especially when overdriven, achieving a magical distortion with slightly enhanced highs

Key Specifications & Design:

• Magnet Type: Alnico 5 magnets. This sets them apart from standard Burstbucker 1, 2, and 3, which use warmer, softer Alnico 2 magnets.
• The Winding Secret: Like vintage PAFs, they feature unbalanced (asymmetric) coil windings, but with a specific twist. While Burstbucker Pros have more wire wound onto the inner slug coil, the '61s are overwound on the outer screw coil.
• Wax Potting: They are very lightly potted, leaving the coils open and acoustically "alive."
• Output: Moderate vintage-style output, usually measuring around 7.8k to 8.0k Ohms

Pickup configurations:

• 1. Neck humbucker
• 2. Neck and bridge humbuckers in phase
• 3. Bridge humbucker
• 4. Neck single coil
• 5. Neck single coil and bridge humbucker in phase
• 6. Neck and bridge single coils in phase
• 7. Neck humbucker and bridge single coil in phase
• 8. Bridge single coil
• 9. Neck and bridge humbuckers out of phase
• 10. Neck single coil and bridge humbucker out of phase
• 11. Neck humbucker and bridge single coil out phase


About Del Mar Lutherie: We’re a small shop in San Diego County, California, and part of the local guitar community (Fender, Taylor, Carvin/Kiesel). We build custom electric guitars and vintage-style hand-wired tube amps. We also buy, sell and trade vintage and used gear.  Our owner is a guitar enthusiast, wood worker and professional engineer and designer by training.

Why buy from us?  Our clients have peace of mind knowing they’re buying from an established and highly rated professional shop.  We've been doing this type of work since 1999 and have thousands of happy customers.  We pride ourselves in providing best-in-class personalized service for each client.  We are a Reverb Preferred Seller, and our approval rating is close to 100%.

Condition:  Our used parts have been tested and verified to work as they should. Used and vintage items will show signs of use. Please look at the photos.
