Gibson CTS Chrome Burstbucker Lead 61 and Rhythm 61 PAF Alnico Humbucker Pickups and Quick Connect Wiring Harness Kit: Push-Pull Pots, Coil Splits, Phase, Pure Bypass - Hand Wound in USA

Gibson Chrome Burstbucker Lead '61 and Rhythm '61 Alnico PAF Humbucker Pickups and Quick Connect Solderless Wiring Harness Kit - with Coil Splits, Phase and Bypass

Made in USA. Removed from a 2019 Gibson Les Paul Classic like the one in the YouTube video (see link).

Fits: Gibson Les Pauls and similar LP style guitars. Great upgrade for your Epiphone Les Paul.

Description: Want better sound and more versatility from your Les Paul? Want high quality hand-wound Gibson pickups? Want to maintain the looks without adding switches. Want the out-of-phase "Greeny" quack made famous by Peter Green, Gary Moore and Kirk Hammet? How about single coil tones? Want to install it quickly without soldering? Want it to be reversible? This kit is just what the Doctor ordered!

Everything you need to install Gibson Pickups and electronics in your Les Paul
All components feature quick connect terminals for ease of installation - No soldering required

Controls:

• Three-way toggle switch
• Bridge volume, Bridge tone, Neck volume, Neck tone
• Pull bridge volume to split bridge pickup for single coil (P90) mode
• Pull neck volume to split neck pickup for single coil (P90) mode
• Pull bridge tone for pure bypass mode (bridge pickup directly to output jack, no tone)
• Pull neck tone for phase reverse for that out of phase quack like Greeny

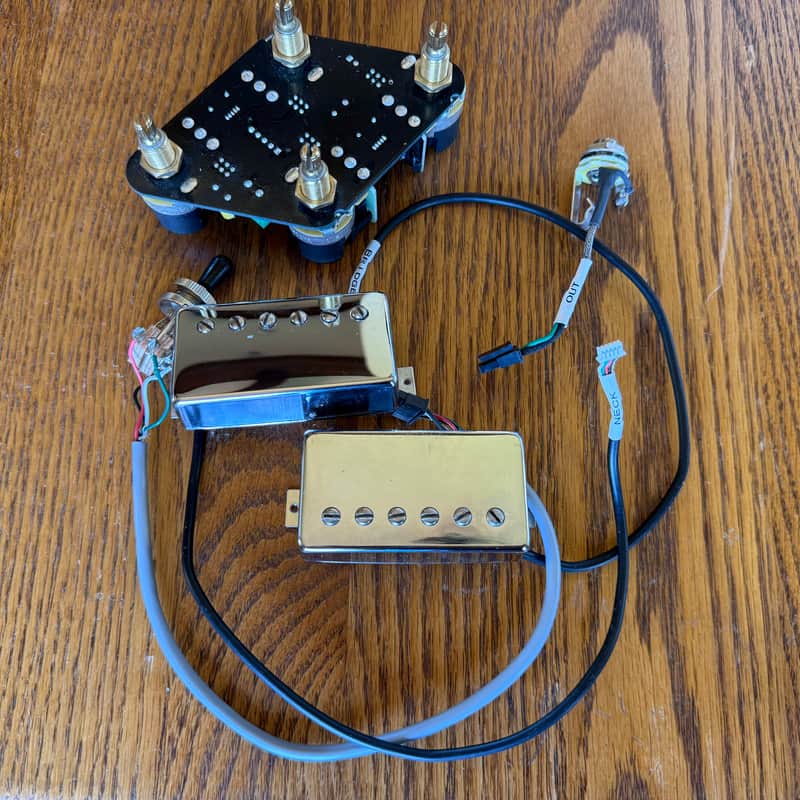

Includes the following:

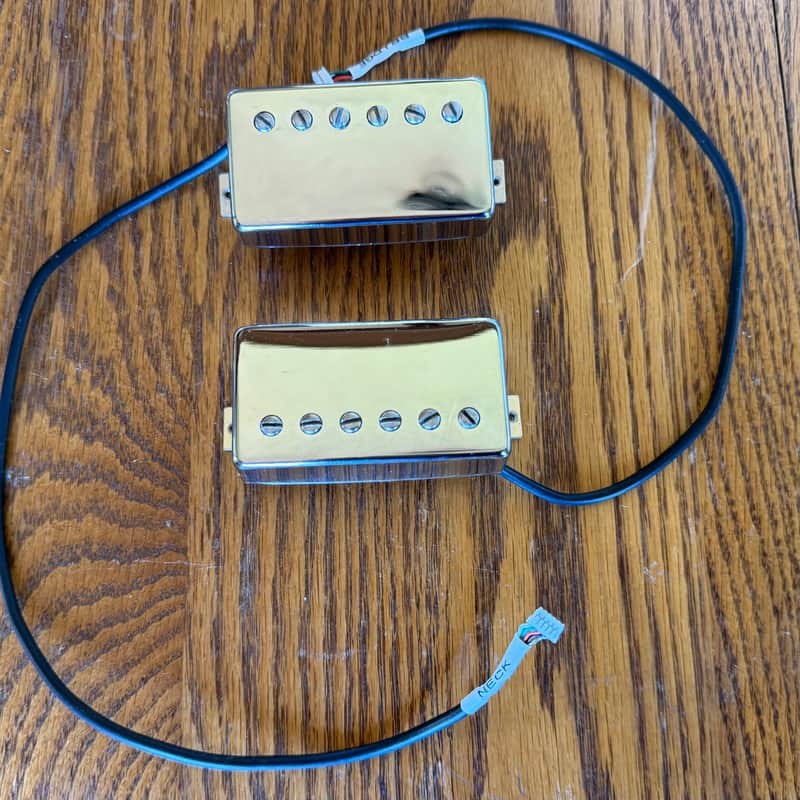

• Gibson Burstbucker '61 Rhythm neck pickup with quick connector and chrome cover
• Gibson Burstbucker '61 Lead bridge pickup with quick connector and chrome cover

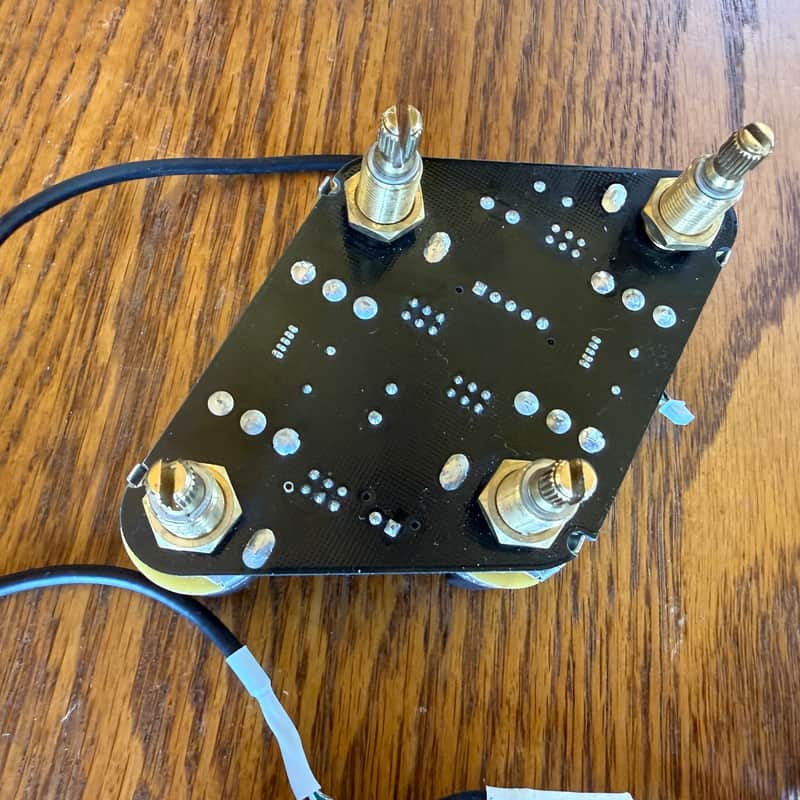

• Four Gibson/CTS 500k long-shaft push-pull pots wired for coil splits, phase reversal and pure bypass mode

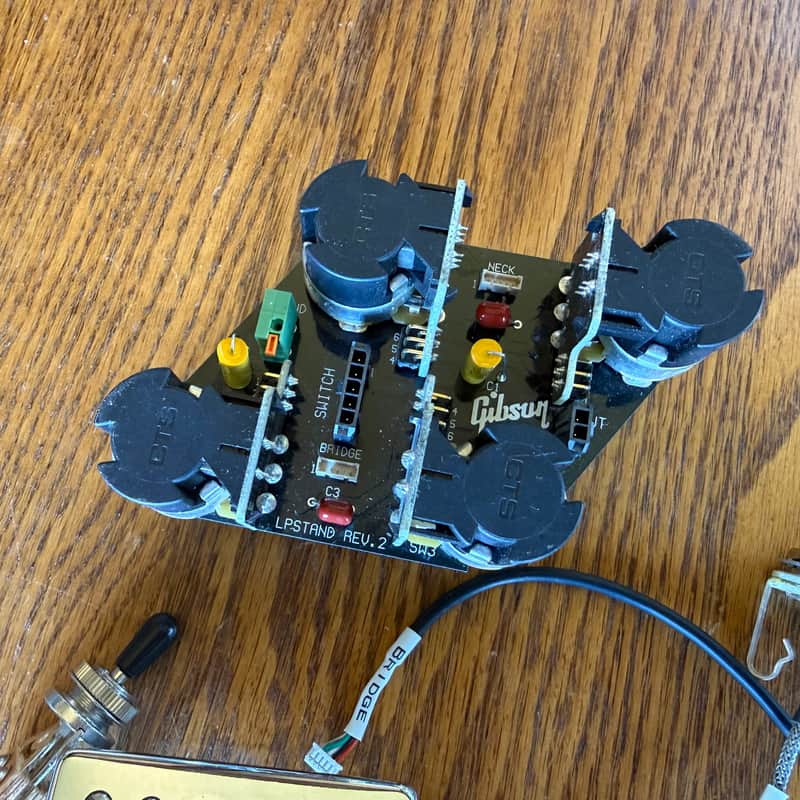

• Gibson quick connect circuit board with tone capacitors
• Three-way toggle switch with quick connector
• Switchcraft output jack with quick connector

Chrome covers: This kit has pickups with chrome covers. The pickups have zebra bobbins underneath. If you prefer Zebra pickups, we have them. See our other listing.

Instructions: Remove your pickups, pots, switch and output jack and replace them with the parts included in this kit. All connections are quick connect. No soldering.

Features and Benefits:

• Awesome upgrade for an Epiphone Les Paul or other Les Paul style guitar
• Nice upgrade for a Gibson Les Paul with standard controls
• High quality parts removed from a 2019 Gibson Les Paul Classic, like the one shown in the Youtube video
• These parts would cost you about $600, if you could find the parts individually.

Gibson '61 Burstbucker Pickups: Gibson Burstbucker 61R and 61T pickups, found in Les Paul Standard '60s models and Les Paul Classics, use Alnico V magnets and are wound with 5261 winds on the screw side and 5000 on the slug side. They are designed to replicate the subtle variations of classic humbucker tones with historically unbalanced coil windings. The 61R (neck) and 61T (bridge) pickups are wound identically, reflecting the historical practice of using the same pickup for both positions. Detailed Specifications:

• Magnet: Alnico V
• Winding: Both have 5261 winds on the screw side and 5000 on the slug side
• Output: Medium (vintage-voiced)
• Wiring: Four-conductor shielded with quick connectors
• Finish: Zebra coil with chrome covers
• DCR: Neck pickup 7.8k, bridge pickup 7.8k, both pickups in parallel 3.9k
• Sound: Known for a bright and smooth tone with clarity, especially when overdriven, achieving a magical distortion with slightly enhanced highs
• Designed for Les Paul Standard '60s models, but also found in other Gibson models.

Pickup configurations:

• 1. Neck humbucker
• 2. Neck and bridge humbuckers in phase
• 3. Bridge humbucker
• 4. Neck single coil
• 5. Neck single coil and bridge humbucker in phase
• 6. Neck and bridge single coils in phase
• 7. Neck humbucker and bridge single coil in phase
• 8. Bridge single coil
• 9. Neck and bridge humbuckers out of phase
• 10. Neck single coil and bridge humbucker out of phase
• 11. Neck humbucker and bridge single coil out phase
