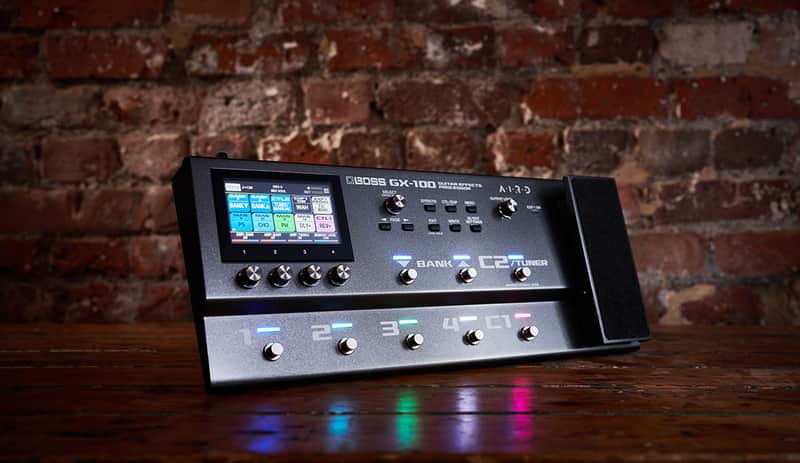

Boss GX-100 Guitar Effects Processor 2022 - Present - Black

Color Your Music with Inspiring Tone

Fusing advanced BOSS tone technologies into a sleek, ultra-modern hardware design, the inspiring GX-100 delivers top-level performance everywhere you play. Explore 32 AIRD amplifiers and over 170 effects effects derived from the flagship GT-1000, and craft great sounds in seconds with the intuitive color touch display. Up to 15 simultaneous effect blocks provide unlimited tone possibilities, coupled with deep real-time command via onboard footswitches, an expression pedal, and external control support.

SPECIFICATIONS

Sampling Frequency48 kHzAD Conversion24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.DA Conversion32 bitsProcessing32-bit floating pointEffects170 Types Maximum Number of Effects15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)
*depending on the circumstancesMemories200 (User) + 100 (Preset)

Preset)Phrase Loop38 sec. (MONO)
19 sec. (STEREO)Tuner Internal Detection+/-0.1 cent

Nominal Input Level

INPUT: -10 dB u
RETURN: -10 dB u Maximum Input Level INPUT: +18 d Bu
RETURN1: +8 dB u Input Impedance INPUT: 1 M ohm
RETURN: 1 M ohm Nominal Output Level

OUTPUT (L/MONO, R): -10 dB u
PHONES: -10 dB u
SEND: -10 dB u

Output Impedance

OUTPUT (L/MONO, R): 1 k ohm
PHONES: 44 ohms
SEND: 1 k ohm Recommended Load Impedance OUTPUT (L/MONO, R): 10 k ohms or greater
PHONES: 44 ohms or greater
SEND: 10 k ohms or greaterControlsBANK DOWN switch, BANK UP switch, CTL1 switch, CTL2/TUNER switch, 1--4 switches, POWER switch, EXP1 switch, GND LIFT switch

EFFECTS button, CTL/EXP button, MENU button, EXIT button, WRITE button, IN/OUT SETTINGS button, PAGE button,1--4 knobs

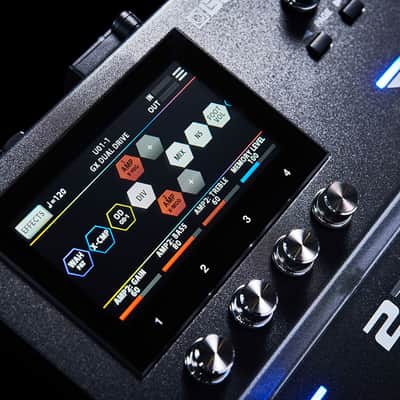

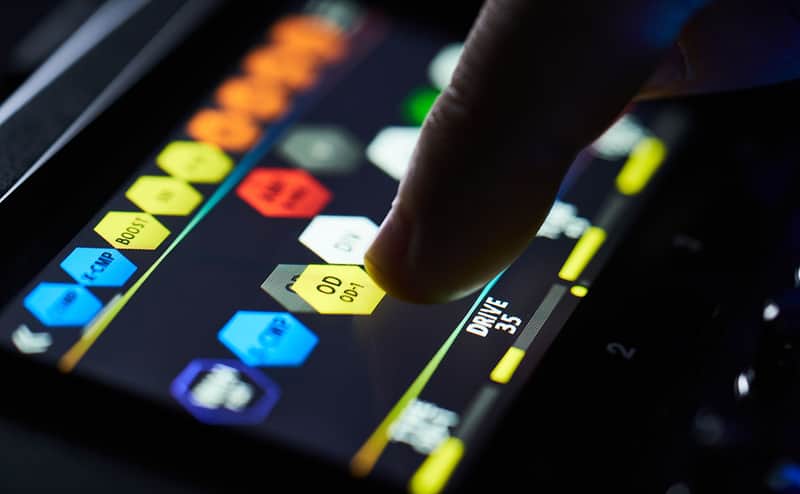

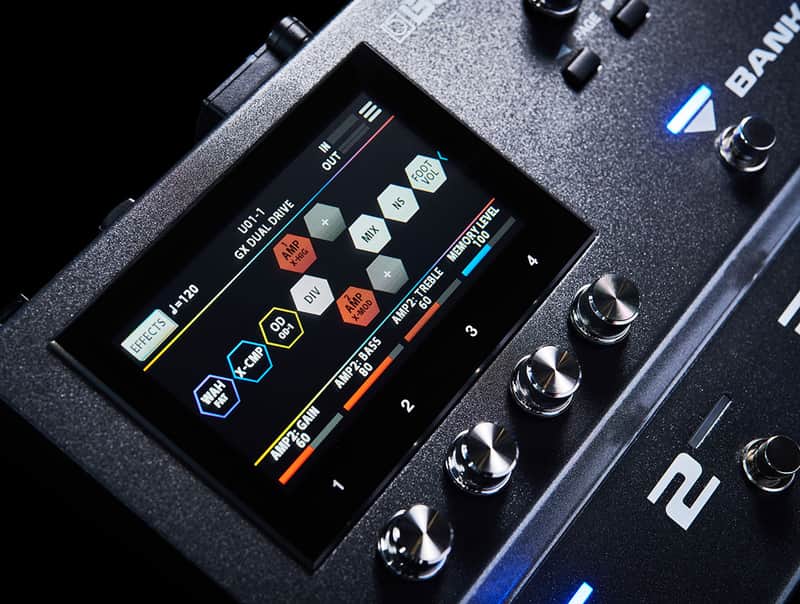

SELECT knob, OUTPUT LEVEL knob, EXP1 pedalDisplayColor Graphic LCD (480 x 272 dots) Touch screenConnectorsINPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
CTL3, 4/EXP2 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors
USB COMPUTER port: USB B type
Bluetooth ADAPTOR connector: Dedicated connector
DC IN jackPower SupplyAC adaptorCurrent Draw1.2 APower consumption when in OFF mode (when the power automatically turns off)0.1 W
