Peavey CS 800 X Amplifier - Black

Peavey CS 800 X - Black

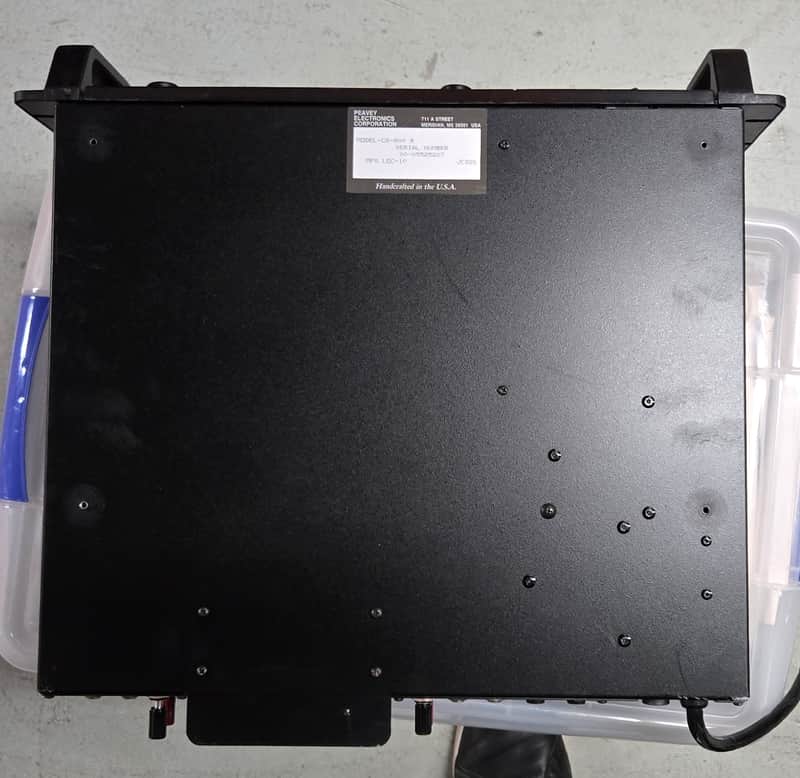

Note: This was one of the earlier runs that don't have an "X" on the front. See Label picture. Tested and functioning perfectly. I have 3 total units if interested.

Power Output (RMS)The most significant upgrade in the CS800X is its ability to handle lower speaker impedances safely.

Mode Load ImpedancePower Output (RMS)

Stereo (Per Channel)8 Ohms240W – 260W

8 Ohms - 240W – 260W

4 Ohms - 420W

2 Ohms - 600W

Bridged Mono

8 Ohms - 840W

4 Ohms - 1200W

Technical Specifications

• Total Harmonic Distortion (THD): Less than 0.03% at rated power.
• Frequency Response: 20 Hz to 20 kHz (+0, -1 dB).
• Power Bandwidth: 10 Hz to 50 kHz at 4 ohms.
• Slew Rate: 40 V/microsecond (Stereo mode).
• Damping Factor: Greater than 200 at 8 ohms.
• Hum and Noise: 100 dB below rated power (unweighted).
• Input Sensitivity: 1.4V RMS (+3 dBV) for rated power.

Dimensions

• Height: 5.25 inches (13.3 cm) — occupies 3 Rack Units (3U).
• Width: 19.0 inches (48.3 cm) — standard rack mounting width.
• Depth: 14.63 inches (37.1 cm) — depth behind the rack mounting ears.
• Total Depth: ~15.5 inches including handles and rear connectors. [1, 2, 3]

Weight

• Net Weight (Unpacked): Approximately 45 lbs (20.5 kg).
• Shipping Weight (Packed): Approximately 51 lbs (23.2 kg). [1, 2]
