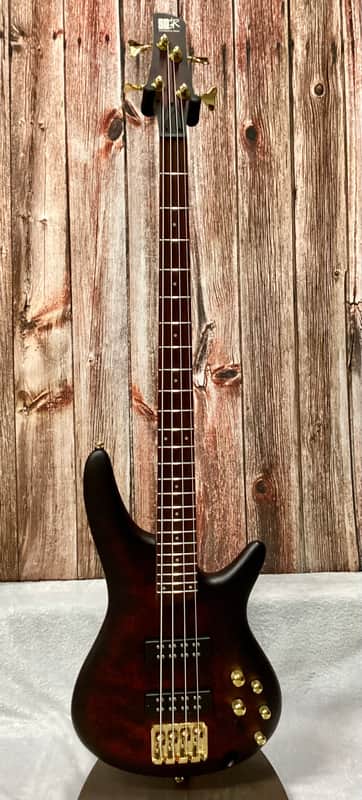

Ibanez SR300EDX Wine Red Frozen Matte

Elevate your musical journey with the Ibanez SR300EDX Bass Guitar in Wine Red Frozen Matte. Designed for the modern musician, this sleek instrument combines style with substance. Its 5-piece Maple/Walnut neck ensures tonal clarity and attack, while the Okoume body delivers a bright, solid sound. The PowerSpan Dual Coil pickups enhance your performance with rich harmonic detail and dynamic expression. With the Ibanez Custom Electronics 3-band EQ and 3-way Power Tap switch, you have the power to tailor your sound to perfection, whether on stage or in the studio. The Accu-cast B500 bridge offers adjustable saddles for personalized string spacing, ensuring comfort and precision. Ideal for versatile sound and effortless playability, the SR300EDX is your perfect musical companion. Weighs in at 8.0 pounds.

• SPECS
  • neck type
    • SR45pc Maple/Walnut neck
  • top/back/body
    • Okoume body
  • fretboard
    • Jatoba fretboard White dot inlay
  • fret
    • Medium frets
  • number of frets
    • 24
  • bridge
    • Accu-cast B500 bridge
  • string space
    • 19mm
  • neck pickup
    • PowerSpan Dual Coil neck pickup Passive
  • bridge pickup
    • PowerSpan Dual Coil bridge pickup Passive
  • equalizer
    • Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch
  • factory tuning
    • 1G,2D,3A,4E
  • strings
    • D'Addario® EXL165
  • string gauge
    • .045/.065/.085/.105
  • hardware color
    • Gold
• NECK DIMENSIONS
  • • Scale : 864mm/34"
    • a : Width 38mm at NUT
    • b : Width 62mm at 24F
    • c : Thickness 19.5mm at 1F
    • d : Thickness 21.5mm at 12F
    • Radius : 305mmR

  • Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the fret position specified by the neck dimension
    c: Thickness of the neck at the first fret
    d: Thickness of the neck at the fret position specified by the neck dimension
    Radius: Radius of the fingerboard

• CONTROLS

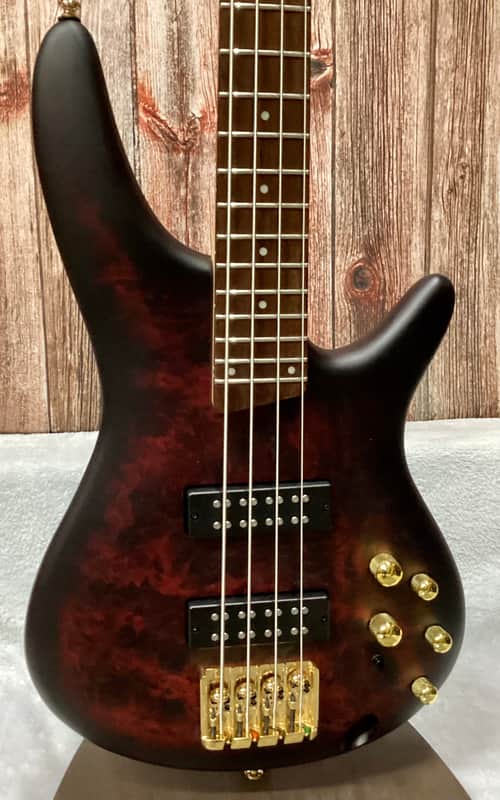

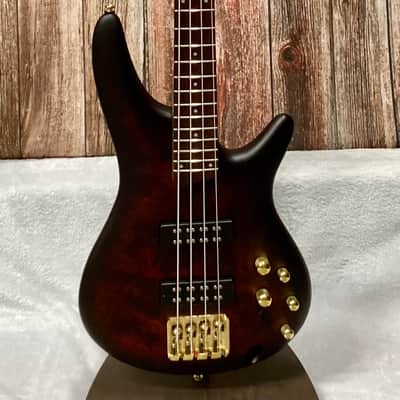

  With the bass held in the playing position, there are three small knobs closest to the lower edge of the body. Directionally, from the lower bout towards the neck knobs are treble boost/cut, mid boost/cut, and bass boost/cut. There are two larger knobs above these, closer to the bridge. The knob closest to the neck controls volume, and the knob next to it is the pickup balancer control. There is a 3-way power tap switch next to the balancer knob. When the switch is in neck position, the humbuckers are tapped. When the switch is in center position, the humbuckers are in series. when the switch is in bridge position, the humbuckers are in power tap mode, which is tapped with additional low end added.

• FREQUENCY RESPONSE

  The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range becomes slightly larger in the high range than around 1000 Hz, but it becomes zero again near 5000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve with a peak around 450 Hz, and the variable width becomes zero near 20 Hz and around 10,000 Hz. The variable range of the peak frequency is approximately ±15 dB.

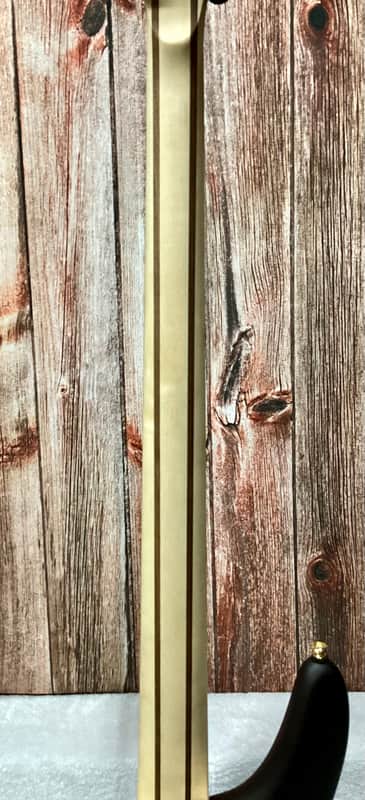

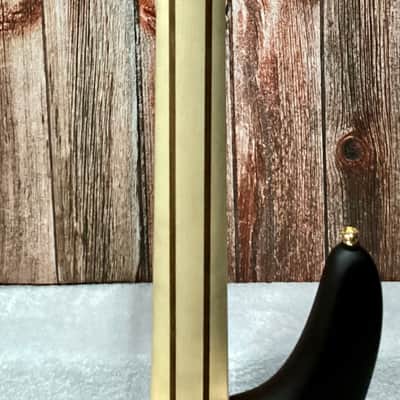

Features 5pc Maple/Walnut neck

The 5pc Maple/Walnut neck provides tonal clarity and superior attack.

Accu-cast B120 Bridge

The B120's extra-wide string slots can accommodate even the heaviest of gauges. The walls and channels of the new bridge plate effectively ”trap” the saddles, ensuring perfect directional uniformity.

PowerSpan Dual Coil pickups

Developed by Ibanez, the exposed pole pieces of the PowerSpan Dual Coil pickups produce a stronger signal and increase the response of the higher frequencies without sacrificing low end. The result is a tone rich in harmonic detail and dynamic expression.

Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch

The 3-band EQ works in conjunction with a coil tap switch for maximum control over a wide variety of professional bass tones. Tap Mode (single coil) creates a punchy, dynamic sound with superior articulation. Series Mode (humbucking) delivers a full, warm tone, and Power Tap Mode provides the best of both worlds-combining the clarity of the single coil with the fat bottom end of the humbucker.

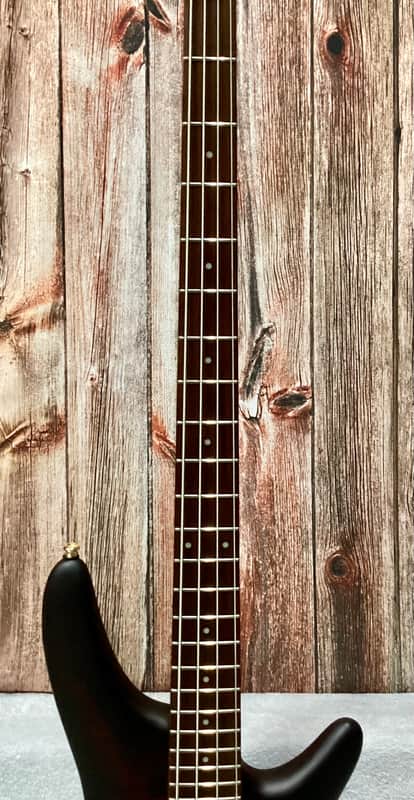

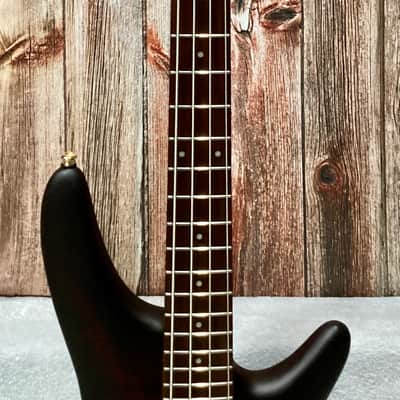

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

Accu-cast B500 bridge

The Accu-cast B500 bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.

Okoume body

The Okoume body provides a bright and solid sound.

Medium frets

Medium sized frets enhance the accuracy of your notes.
